Engineering of onshore/offshore plants in petrochemical field.

The main references are listed below::

1) SAUDI ELASTOMERS PROJECT CARBON BLACK PLANT, Jubail Industrial City, Kingdom of Saudi Arabia: Derrick Flare system 188 m, Water Seal dia. 4550 mm, riser diameter 66”. The following activities have been developed for this project::

  • Mechanical and structural engineering
  • 3D model of the whole package, including Water Seal, Riser and Tip
  • Stress Analysis verification of the piping
  • Finite Element Analysis (FEA)

2) TAKREER Carbon Black & Delayed Coker Project, Abu Dhabi, Emirati Arabi Uniti: Derrick Flare system 55 m, No 2 K.O. Drum dia. 3000/2500 mm, Risers diameter 42”. The following activities have been developed for this project:

  • Mechanical and structural engineering
  • 3D model of the whole package, including K.O. Drums, Risers and Tips
  • Stress Analysis verification of the piping
  • Finite Element Analysis (FEA)

3) SSBR Project (Solution Styrene Butadiene Rubber), Oswiecim, Poland: Guy-wired Flare system 40 m, riser diameter 24”.
The following activities have been developed for this project:

  • Mechanical and structural engineering
  • 3D model of the whole package
  • Stress Analysis verification of the piping

4) SAUDI ELASTOMERS PROJECT CARBON BLACK PLANT, Jubail Industrial City, Kingdom of Saudi Arabia: Self-Supported Flare system 65 m, riser diameter 3300/2200/1069 mm.
The following activities have been developed for this project:

  • Mechanical and structural engineering
  • 3D model of the whole package
  • Stress Analysis verification of the piping
  • Finite Element Analysis (FEA)

5) AFP-SMART FPSO #1, Off-shore plant: Verification of a flare boom tip by Finite Element Analysis (FEA), manifold diameter 30”, lenght 4350 mm, No. 7 flare tips dia. 10”, No. 5 flare tips dia. 8”.

6) PETROKEMYA ABS PROJECT, 3D model of a skid for an Incinerator Package.

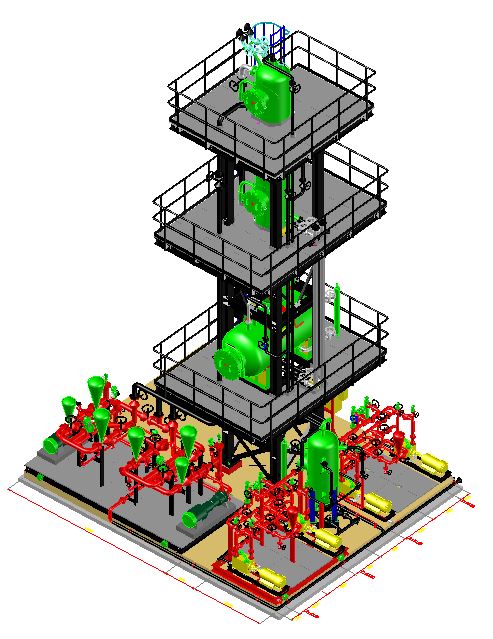

7) UPGRADING HOUT ONSHORE CRUDE FACILITIES, AL-KHAFJI, SAUDI ARABIA, VACUUM DEAERATION PACKAGE U-605.
The following activities have been developed for this project:

  • Mechanical and structural engineering
  • 3D model of the whole package
  • Stress Analysis verification of the piping
